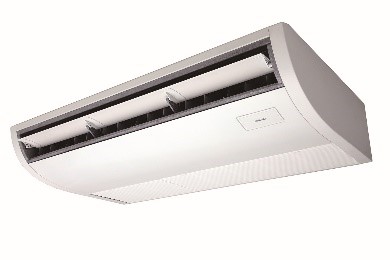

Toshiba’s SDI series Ceiling air conditioners is well-known for its remarkable energy efficiency and performance in a lightweight, compact body, making it well suited for shops and small businesses. Compared to conventional units, the Toshiba’s SDI Ceiling has a flap control and a quiet operational design which creates a comfortable room ambience. Besides, complex installation procedures are simplified by suspending the unit from the ceiling, thus enabling fuss-free installation and maintenance work.

Superior Coefficient of Performance (COP)

Toshiba Super Digital Inverter (SDI) technologies ensures efficient energy consumption, with low operating costs of part load COP of up to 5.66.

Industry’s First magnetic-action control

The new structure of the balanced magnetic-action and the rotor’s weight allows a reduction in energy loss and overall excellent operation efficiency.

Eco-driving DC twin rotary

The R410A refrigerant has an ozone layer depletion coefficient of zero, an absolute essential for an advanced air conditioning system.

Height difference of up to 30 meters

Toshiba’s Super Digital Inverter (SDI) leads the industry with support for height differences of up to 30 meters on a single system, which can cover an 8-story building.

Compatible with pipes with length of up to 75 meters long, increasing the installation flexibility.

Flap control

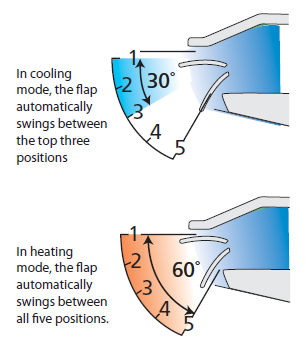

Depending on your cooling or heating needs, the flap automatic swings between the five positions to adjust the volume of airflow that reaches the room.

Smooth curve for pliant shape

This new chassis and rounded design is developed as ceiling units that better match your room interiors.

Combination
Type (Combination) Under ceiling
Equivalent Capacity / HP 2 3 4 5
Model: Under ceiling (Indoor Unit) RAV-SM568CTP-E RAV-SM808CTP-E RAV-SM1108CTP-E RAV-SM1408CTP-E
Qty-indoor unit 1 1 1 1
Model (Outdoor Unit) RAV-SP564ATP-SG1 RAV-SP804ATP-SG1 RAV-SP1104AT-SG3 RAV-SP1404AT-SG3
Cooling capacity: Rated / kW 5 7.1 10 12.5
Cooling capacity: Min - Max / kW 1.2 - 5.6 1.9 - 8.0 2.6 - 12.0 2.6 - 14.0
NEA Tick Rating 2√√ 2√√ 3√√√ 2√√
Refrigerant R410a R410a R410a R410a
Running current, 230V/1/50Hz / A 6.54 9.38 11 16.6
Indoor Unit
Model name (Indoor Unit) RAV-SM568CTP-E RAV-SM808CTP-E RAV-SM1108CTP-E RAV-SM1408CTP-E
Dimension, HxWxD / mm 235 × 950 × 690 235 ×1,270 × 690 235 × 1,586 × 690 235 × 1,586 × 690
Attached remote controller (wired) RBC-AMT32-E RBC-AMT32-E RBC-AMT32-E RBC-AMT32-E
Outdoor Unit
Model name (Outdoor Unit) RAV-SP564ATP-SG1 RAV-SP804ATP-SG1 RAV-SP1104AT-SG3 RAV-SP1404AT-SG3
Dimension, HxWxD / mm 550 × 780 × 290 890 × 900 x 320 1340 × 900 × 320 1340 × 900 × 320
Weight / kg 44 66 93 93
Installation fuse rating / A 16 25 25 25
Combination
Type (Combination) Under ceiling (with Twin Kit)
Equivalent Capacity / HP 2x2 3x2
Model: Under ceiling (Indoor Unit) RAV-SM568CTP-E RAV-SM808CTP-E
Qty-indoor unit 2 2
Model (Outdoor Unit) RAV-SP1104AT-SG3 RAV-SP1404AT-SG3
Cooling capacity: Rated / kW 5 7.1
Cooling capacity: Min - Max / kW 1.5 - 5.6 1.5 - 8.0
NEA Tick Rating 3√√√ 2√√
Refrigerant R410a R410a
Running current, 230V/1/50Hz / A 6.36 9.38
Indoor Unit
Model name (Indoor Unit) RAV-SM568CTP-E × 2 RAV-SM808CTP-E × 2
Dimension, HxWxD / mm 235 × 950 × 690 235 ×1,270 × 690
Attached remote controller (wired) BBC-AMT32-E BBC-AMT32-E
Outdoor Unit
Model name (Outdoor Unit) RAV-SP1104AT-SG3 RAV-SP1404AT-SG3
Dimension, HxWxD / mm 1340 × 900 × 320 1340 × 900 × 320
Weight / kg 93 93
Installation fuse rating / A 25 25
Default:

Wired remote controller RBC-AMT32E


RemoteController3

Standard wired remote controller can be connected to a single indoor unit or a group of up to 8 indoor units. Power save operation limits the greatest current value. The remote controller allows error to be displayed while the protective device works or an error occurs.

Optional:

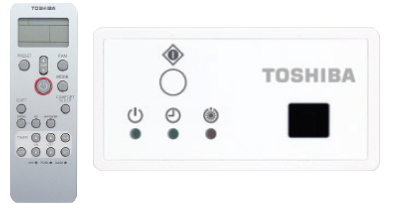

Wireless remote controller kit RBC-AX33CE


RemoteController3
  • Sensor unit; Standalone receiver
  • Start/Stop
  • Changing mode
  • Temperature setting
  • Air flow changing
  • Timer function Either “ON” time or “OFF” time or “CYCLIC” can be set how many 30 min. later ON or OFF is operated.
  • Control by 2 remote controllers is available.Two wireless remote controllers can operate one indoor unit.The indoor unit can then be operated separately from the two different locations.
  • Check code display

Wireless remote controller kit TCB-AX32E2

RemoteController3
  • Sensor unit; Standalone receiver
  • Start/Stop
  • Changing mode
  • Temperature setting
  • Air flow changing
  • Timer function Either “ON” time or “OFF” time or “CYCLIC” can be set how many 30 min. later ON or OFF is operated.
  • Control by 2 remote controllers is available.Two wireless remote controllers can operate one indoor unit.The indoor unit can then be operated separately from the two different locations.
  • Check code display

Lite-vision plus remote controller RBC-AMS55E-ES


RemoteController3

Wired remote controller with a built in 7-day timer-featuring a new multi-language


  • LCD display with backlight, energy saving options and a return back function.
  • Possibility to set and display the room name to easily set-up and monitor the working parameter.
  • New modern and desirable controller design with menu driven display.
  • Save mode by schedule timer to optimise energy consumption.
  • Room temperature display always available.
  • Two “Hot Keys” (F1, F2) for easy operation of air conditioner functions.
  • Easy to read layout including display of indoor unit model name and serial number.
  • Built-in backup power. Settings are kept in memory up to 72 hours in case of power failure.
  • Remote TA sensor available in controller.
  • Can be connected to a single indoor unit or a group of up to 8 indoor units.

Schedule timer TCB-EXS21TLE

RemoteController3
  • Schedule timer mode
  • 6 programmings per day
  • Enabling 8 groups to be programmed
  • A maximum of 64 indoor units can be controlled
  • A maximum of 100 hours back-up power supply
  • Weekly timer mode
  • 7 types of weekly schedule and 3 programmings per day

Central remote controller TCB-SC643TLE

RemoteController3
  • Individual control for max. 64 indoor units divided into 1 to 4 zone (Up to 16 indoor units for each zone)
  • Up to 16 outdoor header units are connectable
  • 4 types of central control settings to inhibit individual operation by remote controller can be selected
  • Usable with other central control devices (Max. 10 devices in one control circuit)
  • Two control mode selectivity (Central controller mode ) Remote controller mode
  • Setting of simultaneous ON/OFF 3 times per day combined with the weekly timer.
Note: To link all IDU (except high-wall) to CRC Control, a net adapter interface card is required – model TCB-PCNT30TLE2
