The Toshiba MiNi-SMMS-7 air conditioner is powerful enough to let you cool as many as 12 rooms with a single system. Outdoor units ranging from 4 to 12HP offer best in class energy savings and quiet operations; its small footprint and piping extensions enables unprecedented configuration flexibility. With centralized control for greater convenience and compact outdoor units for installation flexibility, the MiNi-SMMS-7 makes a perfect solution for small shops and office buildings.

Higher comfort and ease

A single outdoor unit can accommodate up to 12 independently controlled interior units, delivering ideal quiet comfort to every room.

Higher energy savings

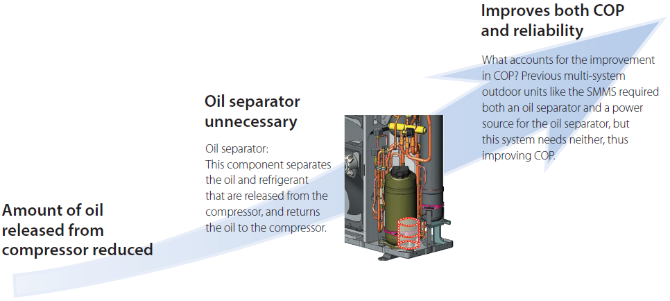

Greater operating performance is now possible by adopting the highly efficient DC twin-rotary compressors and advanced vector-controlled inverters with part load COP of up to 6.25.

Higher installation flexibility

Since the outdoor units is lightweight and compact, it can be installed even in limited spaces

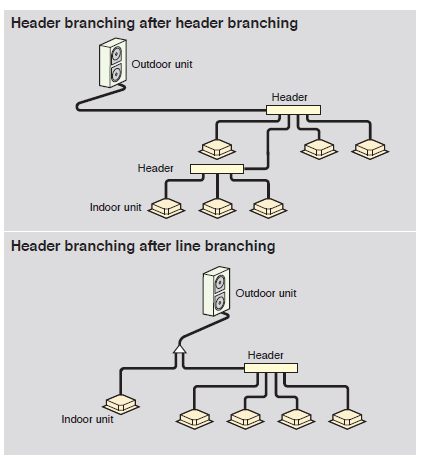

Combination of line and header branching is highly flexible, allowing the shortest route possible, thus saving on installation time and costs.

1-Phase model
Equivalent HP 4HP 5HP 6HP

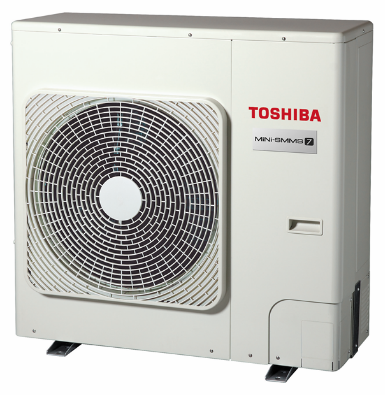

Model name (Outdoor Unit) MCY-MAP0401TP-SG MCY-MAP0501TP-SG MCY-MAP0601TP-SG
Power supply 1-phase 50Hz 220 – 240 V / 1-phase 60Hz 220V
Capacity 100% / kW 12.1 13.3 15.5
Power consumption / kW 3.18 3.72 4.55
EER, Capacity 100% 3.81 3.58 3.41
EER, Capacity 50% 5.17 5.64 5.34
Capacity 50% 6.22 6.25 5.73
NEA Tick Rating 2√√ 2√√ 2√√
Refrigerant R410a R410a R410a
Dimension, HxWxD / mm 890 x 900 x 320
Weight / kg 74
Max. no. of connectable indoor units 6 6 6
Sound pressure level / dB(A) 55 55 55
3-Phase model
Equivalent Capacity 8HP 10HP 12HP

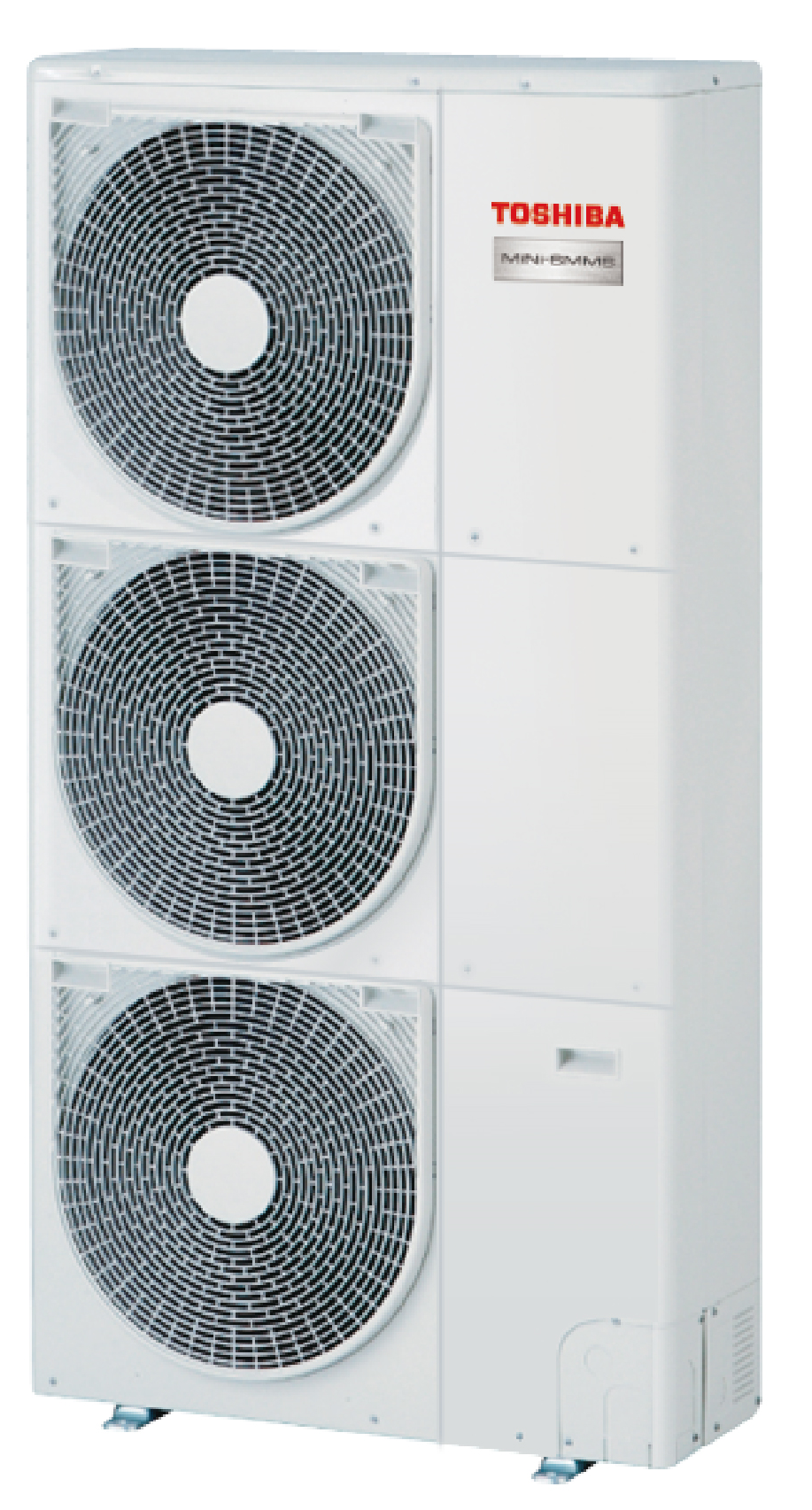

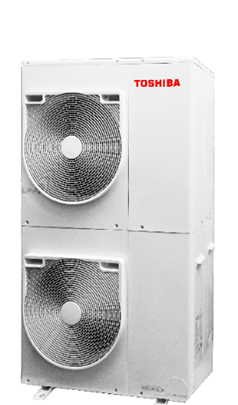

Model name (Outdoor Unit) MCY-MHP0805HT8-SG MCY-MHP1004HT8-1 MCY- MHP1204HT8-1
Power supply 3-phase 4 wires 50Hz 380 - 415V 3-phase 4 wires 50Hz 380 - 415V
Capacity 100% / kW 22.4 28 33.5
Power consumption / kW 7 9.34 11.98
EER, Capacity 100% 3.2 3 2.8
EER, Capacity 50% 6.71 5.2 5.27
Refrigerant R410a R410a R410a
Dimension, HxWxD / mm 1540 x 900 x 320 1825 x 990 x 390
Weight / kg 123 162 164
Max. no. of connectable indoor units 8 10 12
Sound pressure level / dB(A) 58 58 61

Indoor unit

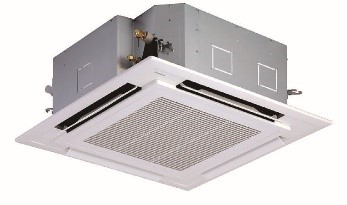

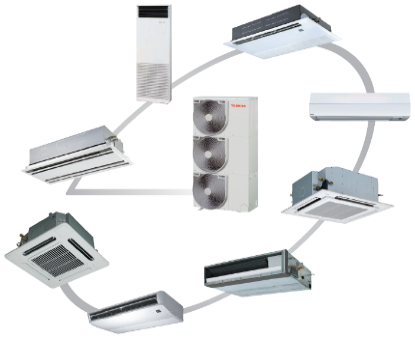

Cooling capacity (HP) 4-way air discharge cassette type (MMU-) Compact 4-way cassette type (MMU-) 2-way air discharge cassette type (MMU-) 1-way air discharge cassette type (MMU-) Slim duct type (MMD-) Super Slim duct type (MMD-) Concealed duct high static pressure type (MMD-) Concealed type (MMD-)
2.2 kW (0.8 HP) AP0077MH-E AP0072WH1 AP0074YH1-E AP0074SPH1-E AP0076M(P)HY* AP0076BHP1-E
2.5 kW (0.9HP) AP0086M(P)HY*
2.8 kW (1.0 HP) AP0094HP1-E AP0097MH-E AP0092WH1 AP0094YH1-E AP0094SPH1-E AP0096M(P)HY AP0096BHP1-E
3.2kW (1.1HP) AP0106M(P)HY*
3.6 kW (1.25HP) AP0124HP1-E AP0127MH-E AP0122WH1 AP0124YH1-E AP0124SPH1-E AP0126M(P)HY* AP0126BHP1-E
4.0 kW (1.5HP) AP0146M(P)HY*
4.5 kW (1.7 HP) AP0154HP1-E AP0157MH-E AP0152WH1 AP0154SH1-E AP0154SPH1-E AP0156M(P)HY AP0156BHP1-E
5.0 kW (1.85HP) AP0176M(P)HY*
5.6 kW (2.0 HP) AP0184HP1-E AP0187MH-E AP0182WH1 AP0184SH1-E AP0184SPH1-E AP0186M(P)HY* AP0186HP1-E AP0186BHP1-E
6.3 kW (2.25HP) AP0206M(P)HY*
7.1 kW (2.5HP) AP0244HP1-E AP0242WH1 AP0244SH1-E AP0244SPH1-E AP0246M(P)HY* AP0246HP1-E AP0246BHP1-E
8.0 kW (3.0 HP) AP0274HP1-E AP0272WH1 AP0274SPH1-E AP0276M(P)HY* AP0276HP1-E AP0276BHP1-E
9.0 kW (3.2 HP) AP0304HP1-E AP0302WH1 AP0306BHP1-E
11.2 kW (4.0 HP) AP0364HP1-E AP0362WH1 AP0366HP1-E AP0366BHP1-E
14.0 kW (5.0 HP) AP0484HP1-E AP0482WH1 AP0486HP1-E AP0486BHP1-E
16.0 kW (6.0 HP) AP0564HP1-E AP0562WH1 AP0566HP1-E AP0566BHP1-E
22.4 kW (8.0 HP) AP0726HP-E
28.0 kW (10.0 HP) AP0966HP-E

Ceiling, High wall and console type
Cooling capacity (HP) Ceiling type (MMC-) High wall type Series 7 (MMK-) Floor standing concealed type (MML-) Floor standing cabinet type (MML-) Console type (MML-) Floor standing type (MMF-) Large capacity floor standing type Direct blow (MMF-) Large capacity floor standing type Duct (MMF-)
2.2 kW (0.8 HP) AP0077HP-E AP0074BH1-E AP0074H1-E AP0074NH1-E
2.8 kW (1.0 HP) AP0093H1 AP0097HP-E AP0094BH1-E AP0094H1-E AP0094NH1-E
3.6 kW (1.25 HP) AP0127HP-E AP0124BH1-E AP0124H1-E AP0124NH1-E
4.5 kW (1.7 HP) AP0158HP-E AP0157HP-E AP0154BH1-E AP0154H1-E AP0154NH1-E AP0156H1-E
5.6 kW (2.0 HP) AP0188HP-E AP0187HP-E AP0184BH1-E AP0184H1-E AP0184NH1-E AP0186H1-E
7.1 kW (2.5 HP) AP0248HP-E AP0247HP-E AP0244BH1-E AP0244H1-E AP0246H1-E
8.0 kW (3.0 HP) AP0278HP-E AP0276H1-E
11.2 kW (4.0 HP) AP0368HP-E AP0366H1-E
14.0 kW (5.0 HP) AP0488HP-E AP0486H1-E
16.0 kW (6.0 HP) AP0568HP-E AP0566H1-E
22.4 kW (8.0 HP) AP0724H-VA/VB AP0724DH-V
28.0 kW (10.0 HP) AP0964H-VA/VB AP0964DH-V
45.0 kW (16.0 HP) AP1444H-VA/VB AP1444DH-V
56.0 kW (20.0 HP) AP1924H-VA/VB AP1924DH-V
