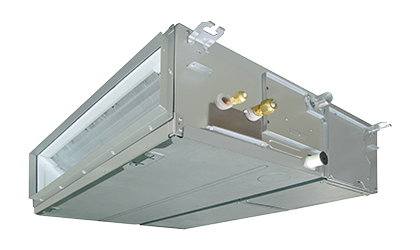

Toshiba’s SDI series Ducted air conditioners combine remarkable energy efficiency and performance in a lightweight, compact body, making it well suited for shops and small businesses. The use of ducts allow air outlets to be conveniently installed anywhere on the room ceilings, accommodating a wide variety of interior layouts from narrow spaces to polygonal rooms. Thus, this wide range of applications not only makes it extremely versatile, but also greatly improves the aesthetics of the room.

Superior Coefficient of Performance (COP)

Toshiba Super Digital Inverter (SDI) technologies ensures efficient energy consumption, with low operating costs of part load COP of up to 5.66.

Industry’s First magnetic-action control

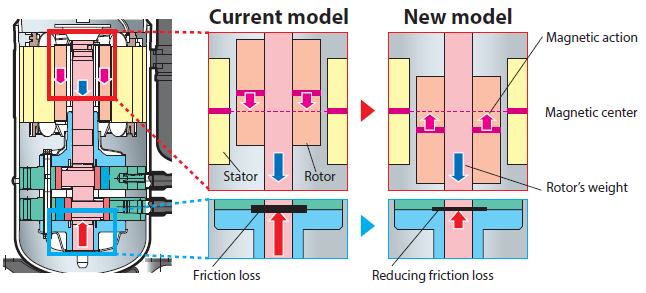

The new structure of the balanced magnetic-action and the rotor’s weight allows a reduction in energy loss and overall excellent operation efficiency.

Eco-driving DC twin rotary

The R410A refrigerant has an ozone layer depletion coefficient of zero, an absolute essential for an advanced air conditioning system.

Height difference of up to 30 meters

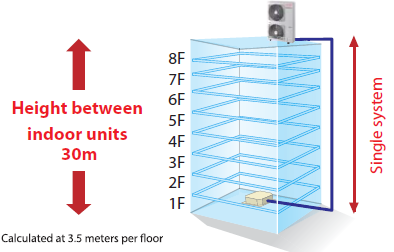

Toshiba’s Super Digital Inverter (SDI) leads the industry with support for height differences of up to 30 meters on a single system, which can cover an 8-story building.

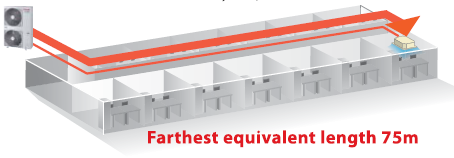

Compatible with pipes with length of up to 75 meters long, increasing the installation flexibility.

Built-in High-lift drain pump

The high lift drain pump kit that raises the drain piping up to 27cm from the drain port makes the piping layout extremely flexible.

New slimmer chassis with higher static pressure

The new chassis has a reduced height of 275mm and higher external static pressure of up to 120 Pa so that areas of the room can be reached for even temperature distribution, regardless of how complex the layout.

Flexible duct

Flexible ducts greatly increases the design flexibility and aesthetics of a room since it can be applied to a wide variety of layouts from narrow to polygonal rooms.

Combination
Type (Combination) Standard ducted
Equivalent Capacity / HP 2 3 4 5
Model: Ducted (Indoor Unit) RAV-SM566BTP-E RAV-SM806BTP-E RAV-SM1106BTP-E RAV-SM1406BTP-E
Qty-indoor unit 1 1 1 1

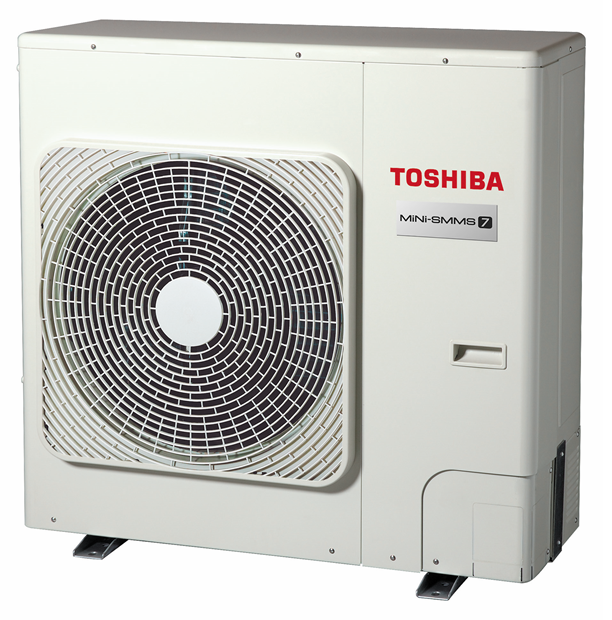

Model (Outdoor Unit) RAV-SP564TP-SG1 RAV-SP8034ATP-SG1 RAV-SP1104AT-SG3 RAV-SP1404AT-SG3
Cooling capacity: Rated / kW 5 7.1 10 12.5
Cooling capacity: Min - Max / kW 1.2 - 5.6 1.9 - 8.0 2.6 - 12.0 2.6 - 14.0
Refrigerant R410a R410a R410a R410a
Running current, 230V/1/50Hz / A 6.54 9.45 11.7 16.6
Indoor Unit
Model name (Indoor Unit) RAV-SM566BTP-E RAV-SM806BTP-E RAV-SM1106BTP-E RAV-SM1406BTP-E
Dimension, HxWxD / mm 275 × 700 × 750 275 × 1000 x 750 275 × 1400 × 750 275 × 1400 × 750
Weight / kg 23 30 40 40
External static pressure, Std / Pa 40 40 40 40
External static pressure, Upper / Pa 120 120 120 120
External static pressure, Lower / Pa 30 30 30 30
Attached remote controller (wired) RBC-AMT32E RBC-AMT32E RBC-AMT32E RBC-AMT32E

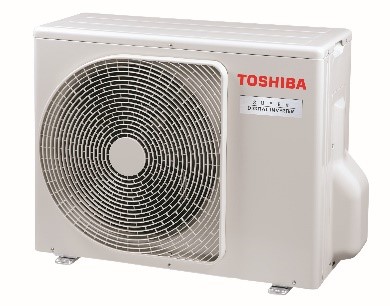

Outdoor Unit
Model name (Outdoor Unit) RAV-SP564TP-SG1 RAV-SP8034ATP-SG1 RAV-SP1104AT-SG3 RAV-SP1404AT-SG3
Dimension, HxWxD / mm 550 × 780 × 290 890 × 900 x 320 1340 × 900 × 320 1340 × 900 × 320
Weight / kg 44 66 93 93
Installation fuse rating / A 16 25 25 25
Combination
Type (Combination) Standard ducted (High Efficiency)
Equivalent Capacity / HP 2 3 4 5
Model: Ducted (Indoor Unit) RAV-SM566BTP-E RAV-SM806BTP-E RAV-SM1106BTP-E RAV-SM1406BTP-E
Qty-indoor unit 1 1 1 1
Model (Outdoor Unit) RAV-SP564TP-SG RAV-SP8034ATP-SG RAV-SP1104AT-SG2 RAV-SP1404AT-SG2
Cooling capacity: Rated / kW 4.8 5.8 9.7 11.2
Cooling capacity: Min - Max / kW 1.2 - 5.6 1.9 - 8.0 2.6 - 11.0 2.6 - 14.0
Refrigerant R410a R410a R410a R410a
Running current, 230V/1/50Hz / A 6.54 8.14 12.53 16.8
Indoor Unit
Model name (Indoor Unit) RAV-SM566BTP-E RAV-SM806BTP-E RAV-SM1106BTP-E RAV-SM1406BTP-E
Dimension, HxWxD / mm 275 × 700 × 750 275 × 1000 x 750 275 × 1400 × 750 275 × 1400 × 750
Weight / kg 23 30 40 40
External static pressure, Std / Pa 40 40 40 40
External static pressure, Upper / Pa 120 120 120 120
External static pressure, Lower / Pa 30 30 30 30
Attached remote controller (wired) RBC-AMT32E RBC-AMT32E RBC-AMT32E RBC-AMT32E
Outdoor Unit
Model name (Outdoor Unit) RAV-SP564TP-SG RAV-SP8034ATP-SG RAV-SP1104AT-SG2 RAV-SP1404AT-SG2
Dimension, HxWxD / mm 550 × 780 × 290 890 × 900 x 320 1340 × 900 × 320 1340 × 900 × 320
Weight / kg 44 66 93 93
Installation fuse rating / A 16 25 25 25
Combination Unit
Type (Combination) Standard ducted (with Twin Kit) Standard ducted - High Efficiency (with Twin Kit)
Equivalent Capacity / HP 2x2 3x2 2x2 3x2
Model: Ducted (Indoor Unit) RAV-SM566BTP-E RAV-SM806BTP-E RAV-SM566BTP-E RAV-SM806BTP-E
Qty-indoor unit 2 2 2 2
Model (Outdoor Unit) RAV-SP1104AT-SG3 RAV-SP1404AT-SG3 RAV-SP1104AT-SG2 RAV-SP1404AT-SG2
Cooling capacity: Rated / kW 5 7.1 4.8 6.1
Cooling capacity: Min - Max / kW 1.2 - 5.6 1.9 - 8.0 1.2 - 5.6 1.9 - 8.0
Refrigerant R410a R410a R410a R410a
Running current, 230V/1/50Hz / A 6.54 9.45 6.54 8.14
Indoor Unit
Model name (Indoor Unit) RAV-SM566BTP-E × 2 RAV-SM806BTP-E × 2 RAV-SM566BTP-E × 2 RAV-SM806BTP-E × 2
Dimension, HxWxD / mm 275 × 700 × 750 275 × 1000 × 750 275 × 700 × 750 275 × 1000 × 750
Weight / kg 23 30 23 30
External static pressure, Std / Pa 40 40 40 40
External static pressure, Upper / Pa 120 120 120 120
External static pressure, Lower / Pa 30 30 30 30
Attached remote controller (wired) BBC-AMT32E BBC-AMT32E BBC-AMT32E BBC-AMT32E

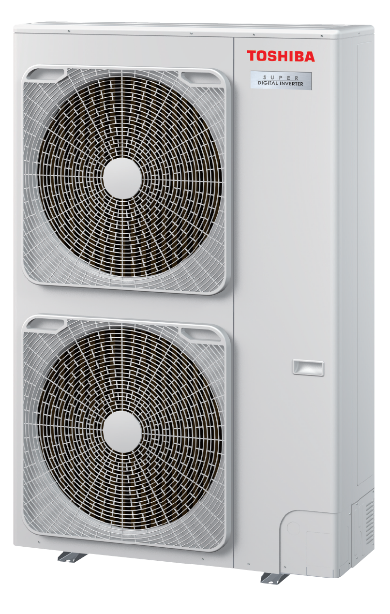

Outdoor Unit
Model name (Outdoor Unit) RAV-SP1104AT-SG3 RAV-SP1404AT-SG3 RAV-SP1104AT-SG2 RAV-SP1404AT-SG2
Dimension, HxWxD / mm 1340 × 900 × 320 1340 × 900 × 320 1340 × 900 × 320 1340 × 900 × 320
Weight / kg 93 93 93 93
Installation fuse rating / A 25 25 25 25
Default:

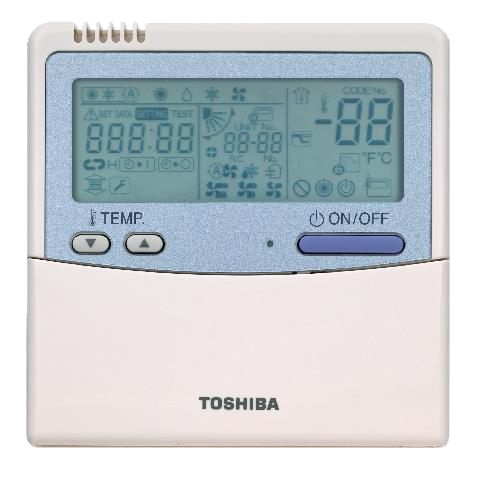

Wired remote controller RBC-AMT32E

RemoteController3

Standard wired remote controller can be connected to a single indoor unit or a group of up to 8 indoor units. Power save operation limits the greatest current value. The remote controller allows error to be displayed while the protective device works or an error occurs.

Optional:

Wireless remote controller kit TCB-AX32E2

RemoteController3
  • Sensor unit; Standalone receiver
  • Start/Stop
  • Changing mode
  • Temperature setting
  • Air flow changing
  • Timer function Either “ON” time or “OFF” time or “CYCLIC” can be set how many 30 min. later ON or OFF is operated.
  • Control by 2 remote controllers is available.Two wireless remote controllers can operate one indoor unit.The indoor unit can then be operated separately from the two different locations.
  • Check code display

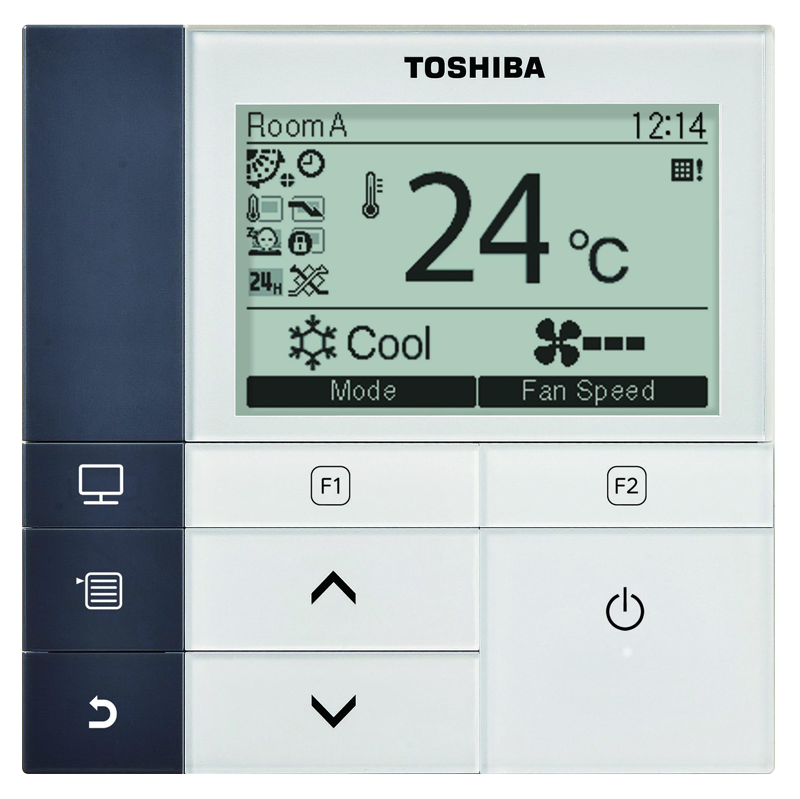

Lite-vision plus remote controller RBC-AMS55E-ES

RemoteController3

Wired remote controller with a built in 7-day timer-featuring a new multi-language

  • LCD display with backlight, energy saving options and a return back function.
  • Possibility to set and display the room name to easily set-up and monitor the working parameter.
  • New modern and desirable controller design with menu driven display.
  • Save mode by schedule timer to optimise energy consumption.
  • Room temperature display always available.
  • Two “Hot Keys” (F1, F2) for easy operation of air conditioner functions.
  • Easy to read layout including display of indoor unit model name and serial number.
  • Built-in backup power. Settings are kept in memory up to 72 hours in case of power failure.
  • Remote TA sensor available in controller.
  • Can be connected to a single indoor unit or a group of up to 8 indoor units.

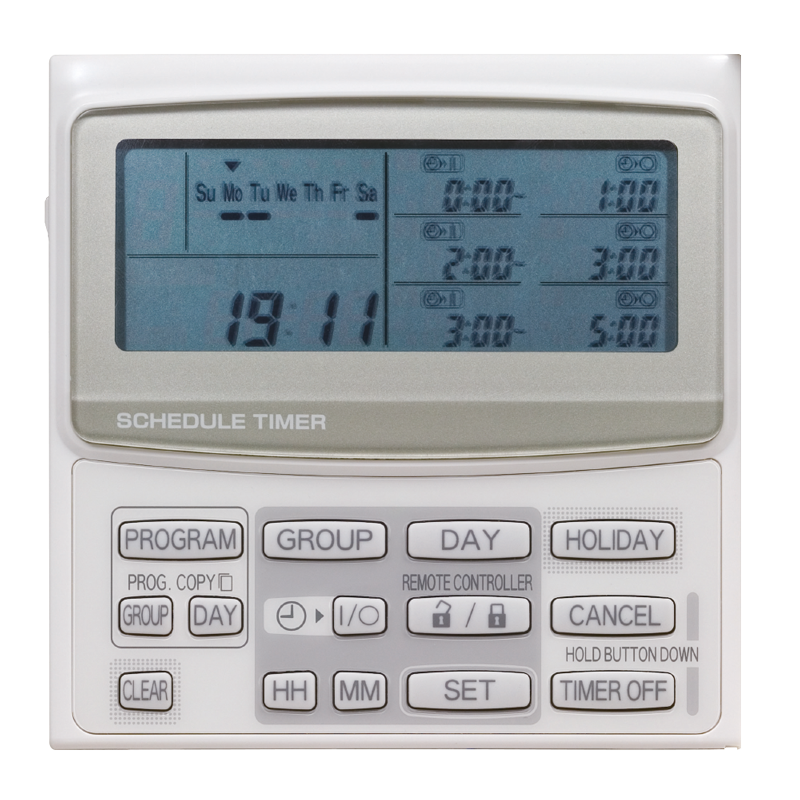

Schedule timer TCB-EXS21TLE


RemoteController3
  • Schedule timer mode
  • 6 programmings per day
  • Enabling 8 groups to be programmed
  • A maximum of 64 indoor units can be controlled
  • A maximum of 100 hours back-up power supply
  • Weekly timer mode
  • 7 types of weekly schedule and 3 programmings per day

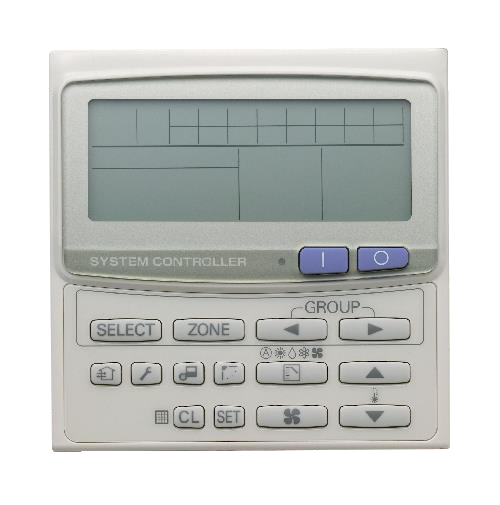

Central remote controller TCB-SC643TLE

RemoteController3
  • Individual control for max. 64 indoor units divided into 1 to 4 zone (Up to 16 indoor units for each zone)
  • Up to 16 outdoor header units are connectable
  • 4 types of central control settings to inhibit individual operation by remote controller can be selected
  • Usable with other central control devices (Max. 10 devices in one control circuit)
  • Two control mode selectivity (Central controller mode ) Remote controller mode
  • Setting of simultaneous ON/OFF 3 times per day combined with the weekly timer.
Note: To link all IDU (except high-wall) to CRC Control, a net adapter interface card is required – model TCB-PCNT30TLE2
