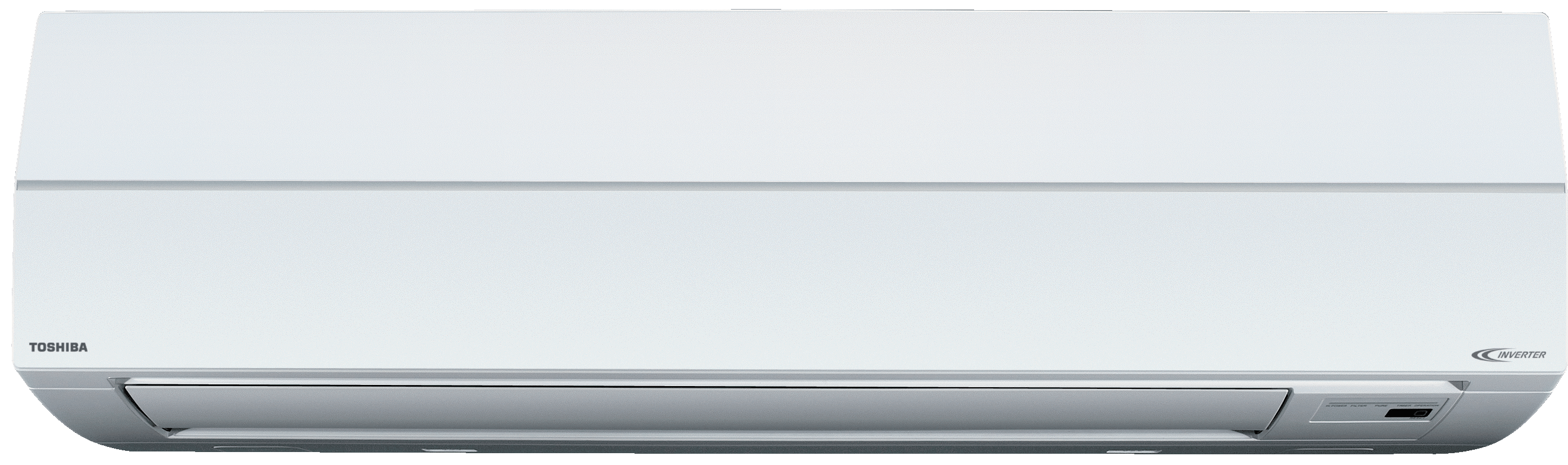

Specially designed for light commercial and business environments, the Toshiba’s SDI series wall mounted air conditioner unit prides itself on its ability to offer high energy efficiency and performance in a compact body. With its slim-line design, this compact and stylish unit compliments any room setting, enhancing the elegance and ambience of the interior.

Superior Coefficient of Performance (COP)

Toshiba Super Digital Inverter (SDI) technologies ensures efficient energy consumption, with low operating costs of part load COP of up to 5.66.

Industry’s First magnetic-action control

The new structure of the balanced magnetic-action and the rotor’s weight allows a reduction in energy loss and overall excellent operation efficiency.

Eco-driving DC twin rotary

The R410A refrigerant has an ozone layer depletion coefficient of zero, an absolute essential for an advanced air conditioning system.

Height difference of up to 30 meters

Toshiba’s Super Digital Inverter (SDI) leads the industry with support for height differences of up to 30 meters on a single system, which can cover an 8-story building.

Compatible with pipes with length of up to 75 meters long, increasing the installation flexibility.

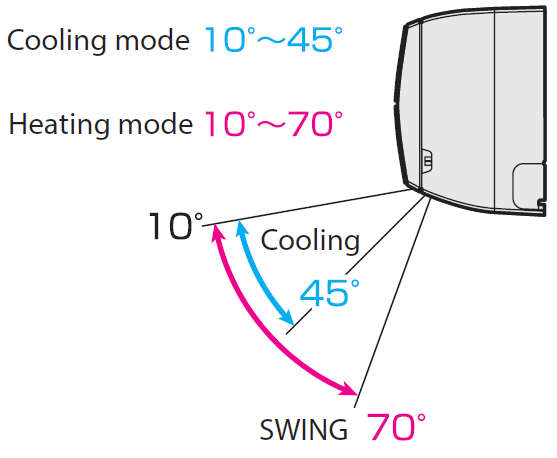

Optimum air distribution

45 degree directional Auto-swing louver mode allows for optimum air distribution throughout the room for maximum comfort.

Self-cleaning function

Toshiba’s self-cleaning function is designed to reduce the humidity that causes mold to form on the heat exchanger coils inside an air-conditioning unit.

Auto-louvre mode

Air outlet grilles move automatically to allow optimum air distribution throughout the room.

Combination
Type (Combination) High Wall High Wall (with Twin kit)
Equivalent Capacity 2 3 2x2 3x2
Model: High Wall (Indoor Unit) RAV-SM566KRT-E RAV-SM806KRT-E RAV-SM566KRT-E RAV-SM806KRT-E
Qty-indoor unit 1 1 2 2
Model (Outdoor Unit) RAV-SP564ATP-SG1 RAV-SP804ATP-SG1 RAV-SP1104AT-SG3 RAV-SP1404AT-SG3
Cooling capacity: Rated / kW 4.8 6.8 4.8 6.8
Cooling capacity: Min - Max / kW 1.2 - 5.6 1.9 - 8.0 1.2 - 5.6 1.9 - 8.0
NEA Tick Rating 2√√ 2√√ 3√√√ 2√√
Refrigerant R410a R410a R410a R410a
Running current, 230V/1/50Hz / A 6.36 9.15 6.36 9.15
Indoor
Model name (Indoor Unit) RAV-SM566KRT-E RAV-SM806KRT-E RAV-SM566KRT-E × 2 RAV-SM806KRT-E × 2
Dimension, HxWxD / mm 320 × 1050 × 228 320 × 1050 × 228 320 × 1050 × 228 320 × 1050 × 228
Attached remote controller (wireless) WH-L11SE WH-L11SE WH-L11SE WH-L11SE
Outdoor
Model name (Outdoor Unit) RAV-SP564ATP-SG1 RAV-SP804ATP-SG1 RAV-SP1104AT-SG3 RAV-SP1404AT-SG3
Dimension, HxWxD / mm 550 × 780 × 290 890 × 900 x 320 1340 × 900 × 320 1340 × 900 × 320
Weight / kg 44 66 93 93
Installation fuse rating / A 16 25 25 25
Default:

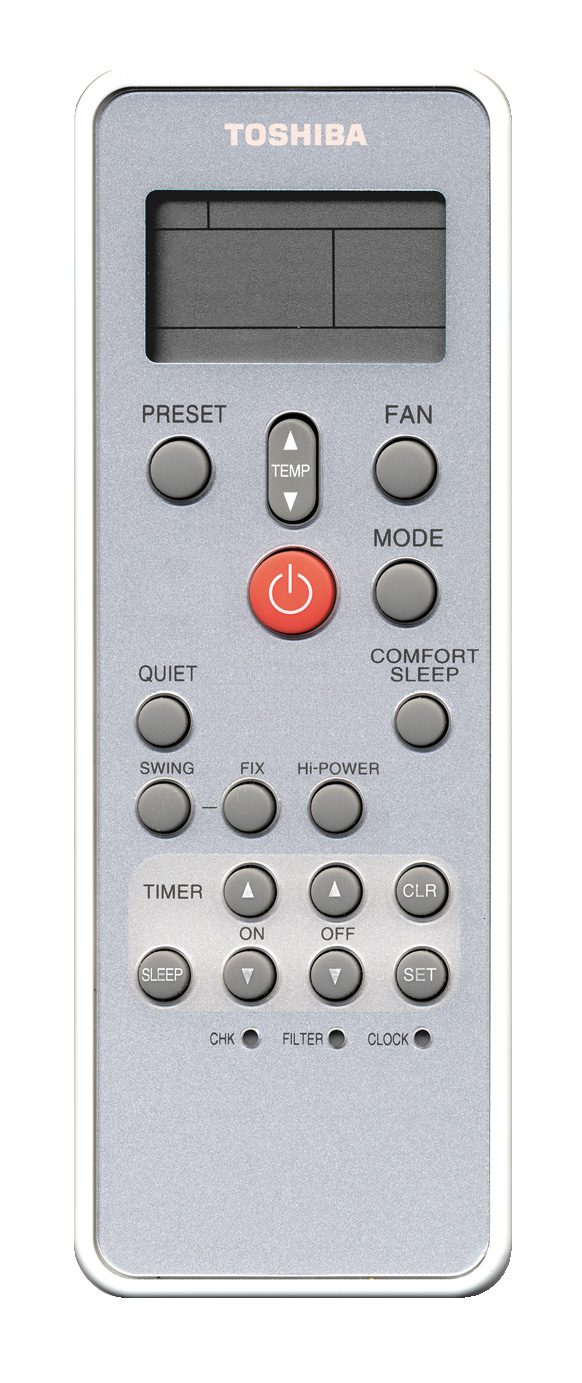

Wireless remote controller WH-L11SE

RemoteController3
  • Start/Stop
  • Changing mode
  • Temperature setting
  • Air flow changing
  • Timer function Either “ON” time or “OFF” time or “CYCLIC” can be set how many 30 min. later ON or OFF is operated.
  • Control by 2 remote controllers is available.Two wireless remote controllers can operate one indoor unit.The indoor unit can then be operated separately from the two different locations.
  • Check code display
Optional:

Wireless remote controller kit TCB-AX32E2

RemoteController3
  • Sensor unit; Standalone receiver
  • Start/Stop
  • Changing mode
  • Temperature setting
  • Air flow changing
  • Timer function Either “ON” time or “OFF” time or “CYCLIC” can be set how many 30 min. later ON or OFF is operated.
  • Control by 2 remote controllers is available.Two wireless remote controllers can operate one indoor unit.The indoor unit can then be operated separately from the two different locations.
  • Check code display

Lite-vision plus remote controller RBC-AMS55E-ES

RemoteController3

Wired remote controller with a built in 7-day timer-featuring a new multi-language

  • LCD display with backlight, energy saving options and a return back function.
  • Possibility to set and display the room name to easily set-up and monitor the working parameter.
  • New modern and desirable controller design with menu driven display.
  • Save mode by schedule timer to optimise energy consumption.
  • Room temperature display always available.
  • Two “Hot Keys” (F1, F2) for easy operation of air conditioner functions.
  • Easy to read layout including display of indoor unit model name and serial number.
  • Built-in backup power. Settings are kept in memory up to 72 hours in case of power failure.
  • Remote TA sensor available in controller.
  • Can be connected to a single indoor unit or a group of up to 8 indoor units.

Wired remote controller RBC-AMT32E

RemoteController3

Standard wired remote controller can be connected to a single indoor unit or a group of up to 8 indoor units. Power save operation limits the greatest current value. The remote controller allows error to be displayed while the protective device works or an error occurs.

Schedule timer TCB-EXS21TLE

RemoteController3
  • Schedule timer mode
  • 6 programmings per day
  • Enabling 8 groups to be programmed
  • A maximum of 64 indoor units can be controlled
  • A maximum of 100 hours back-up power supply
  • Weekly timer mode
  • 7 types of weekly schedule and 3 programmings per day

Central remote controller TCB-SC643TLE

RemoteController3
  • Individual control for max. 64 indoor units divided into 1 to 4 zone (Up to 16 indoor units for each zone)
  • Up to 16 outdoor header units are connectable
  • 4 types of central control settings to inhibit individual operation by remote controller can be selected
  • Usable with other central control devices (Max. 10 devices in one control circuit)
  • Two control mode selectivity (Central controller mode ) Remote controller mode
  • Setting of simultaneous ON/OFF 3 times per day combined with the weekly timer.
Note: To link all IDU (except high-wall) to CRC Control, a net adapter interface card is required – model TCB-PCNT30TLE2
