Toshiba’s SPI series Ceiling air conditioners is well-known for its remarkable energy efficiency and performance with low GWP R32 refrigerant in a lightweight, compact body, making it well suited for shops and small businesses. Compared to conventional units, the Toshiba’s SPI Ceiling has a flap control and a quiet operational design which creates a comfortable room ambience. Besides, complex installation procedures are simplified by suspending the unit from the ceiling, thus enabling fuss-free installation and maintenance work.

Superior Coefficient of Performance (COP)

The new SPI model achieves top class NEA energy efficiency rating up to 4 tick.

Compact & Light Weight

The compact condensing unit of single fan chassis is light weight at 62kg for 5HP. Thus it is easy to transport and install.

Magic Coil

The fan coil unit is equipped with Magic Coil, a special aqua-coated aluminum fin heat exchanger that helps prevent dirt and debris from accumulating on the coils.

Sealed Inverter Box

Inverter box of SPI is fully sealed up in order to avoid malfunction due to sands, dust and small animal.

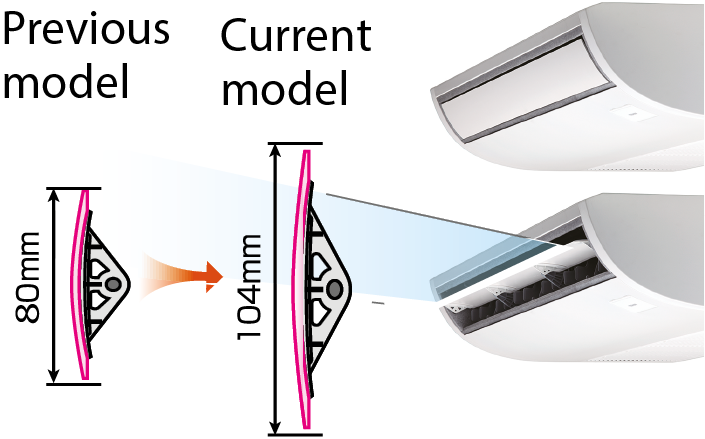

Comfort

Automatic louver control for all year round comfort and efficiency. Low noise levels, thanks to high diameter fan and large air volume.

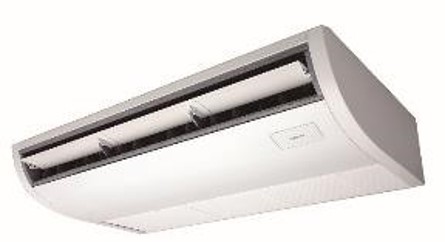

Smooth curve for pliant shape

This new chassis and rounded design is developed as ceiling units that better match your room interiors.

Combination
Type (Combination) Under Ceiling
Equivalent Capacity / HP 2 3 4 5
Cooling capacity: Rated / kW 5.0 7.4 9.5 11.0
Cooling capacity: Min – Max / kW 1.2 – 5.6 2.0 – 8.5 4.0 – 11.2 4.0 – 13.2
NEA Tick Rating 3√√√ 4√√√√ 3√√√ 3√√√
Refrigerant R32 R32 R32 R32
Running current, 230V/1/50Hz / A 5.75 – 6.30 7.40 – 8.10 11.00 –  12.00 12.75 – 13.90
Indoor Unit
Model name (Indoor Unit) RAV-GE1801CP RAV-GE2501CP RAV-GE3601CP RAV-GE4201CP
Dimension, HxWxD / mm 235 x 952 x 690 235 x 1269 x 690 235 x 1586 x 690 235 x 1586 x 690
Weight / kg 23 29 37 37
Remote controller kit, wireless RBC-AX33CE RBC-AX33CE RBC-AX33CE RBC-AX33CE
Outdoor Unit
Model name (Outdoor Unit) RAV-GE1801AP-SG1 RAV-GE2501AP-SG RAV-GE3601AP-SG1 RAV-GE4201AP-SG
Dimension, HxWxD / mm 630 x 800 x 300 890 x 900 x 320 890 x 900 x 320 890 x 900 x 320
Weight / kg 37 51 59 61
Recommended Isolator / A 20 20 32 32
Default:

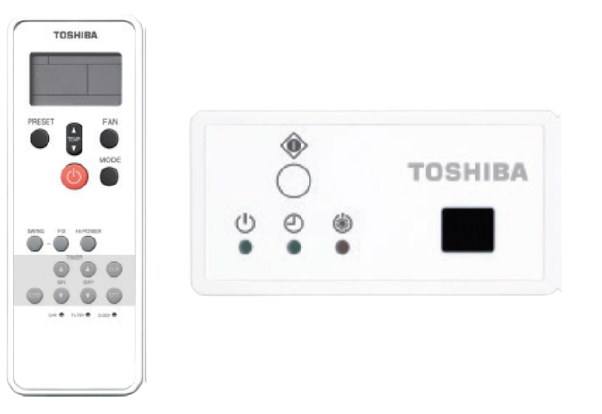

Wireless remote controller kit RBC-AX33CE


Sensor unit; Standalone receiver

  • Start/Stop
  • Changing mode
  • Temperature setting
  • Air flow changing
  • Timer function Either “ON” time or “OFF” time or “CYCLIC” can be set how many 30 min. later ON or OFF is operated.
  • Control by 2 remote controllers is available. Two wireless remote controllers can operate one indoor unit. The indoor unit can then be operated separately from the two different locations.
  • Check code display
Optional:

Lite-vision plus remote controller RBC-AMS55E-ES


  • Wired remote controller with a built in 7-day timer-featuring a new multi-language
  • LCD display with backlight, energy saving options and a return back function.
  • Possibility to set and display the room name to easily set-up and monitor the working parameter.
  • New modern and desirable controller design with menu driven display.
  • Save mode by schedule timer to optimise energy consumption.
  • Room temperature display always available.
  • Two “Hot Keys” (F1, F2) for easy operation of air conditioner functions.
  • Easy to read layout including display of indoor unit model name and serial number.
  • Built-in backup power. Settings are kept in memory up to 72 hours in case of power failure.
  • Remote TA sensor available in controller.
  • Can be connected to a single indoor unit or a group of up to 8 indoor units.
