Specially designed for light commercial and business environments, the Toshiba’s SPI series wall mounted air conditioner unit prides itself on its ability to offer high energy efficiency and performance with low GWP R32 refrigerant in a compact body. With its slim-line design, this compact and stylish unit compliments any room setting, enhancing the elegance and ambience of the interior.

Superior Coefficient of Performance (COP)

The new SPI model achieves top class NEA energy efficiency rating up to 4 tick,

Compact & Light Weight

The compact condensing unit of single fan chassis is light weight at 62kg for 5HP. Thus it is easy to transport and install.

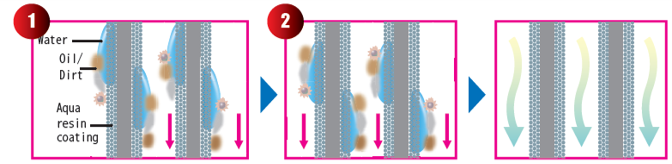

Magic Coil

The fan coil unit is equipped with Magic Coil, a special aqua-coated aluminum fin heat exchanger that helps prevent dirt and debris from accumulating on the coils.

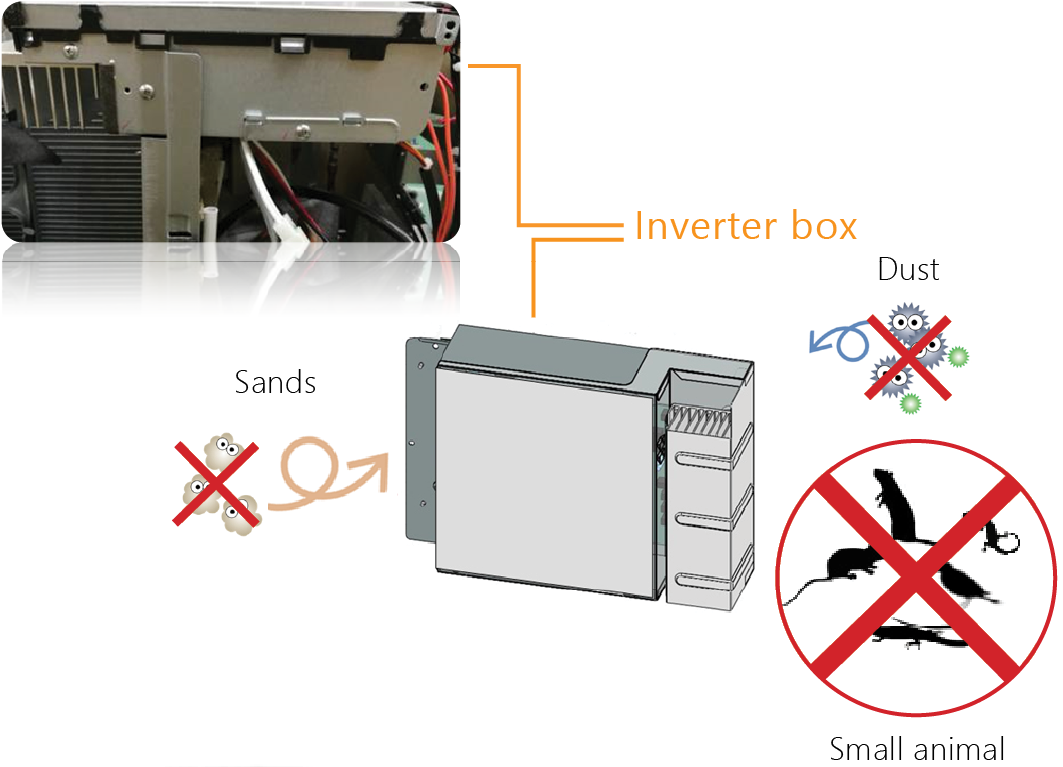

Sealed Inverter Box

Inverter box of SPI is fully sealed up in order to avoid malfunction due to sands, dust and small animal.

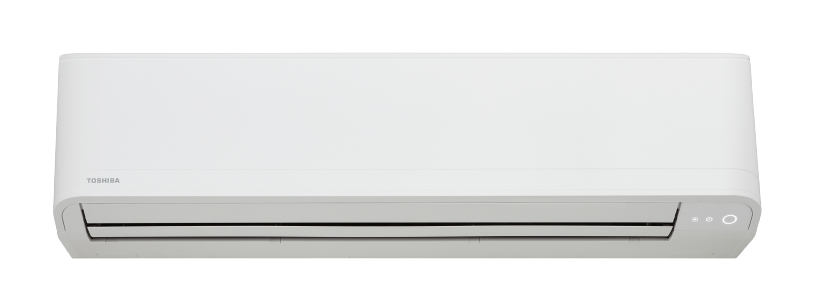

Large Cooling Capacity

The new wall mounted indoor unit has cooling capacity of up to 11.2 kW, enable cooling of a larger space with less wall mounted indoor unit, for better aesthetic design.

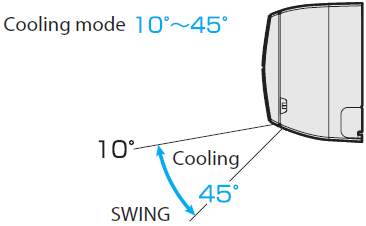

Optimum air distribution

45 degree directional Auto-swing louver mode allows for optimum air distribution throughout the room for maximum comfort.

Self-cleaning function

Toshiba’s self-cleaning function is designed to reduce the humidity that causes mold to form on the heat exchanger coils inside an air-conditioning unit.

Auto-louvre mode

Air outlet grilles move automatically to allow optimum air distribution throughout the room.

Combination
Type (Combination) Wall Mounted
Equivalent Capacity / HP 2 3 4
Cooling capacity: Rated / kW 5.0 6.1 8/3
Cooling capacity: Min – Max / kW 1.2 – 5.6 2.0 – 8.5 4.0 – 11.2
NEA Tick Rating 3√√√ 4√√√√ 3√√√
Refrigerant R32 R32 R32
Running current, 230V/1/50Hz / A 5.85 – 6.40 6.30 – 6.85 9.65 –  10.50
Indoor Unit
Model name (Indoor Unit) RAV-GE1801KRP RAV-GE2501KRP RAV-GE3601KRP
Dimension, HxWxD / mm 320 x 1050 x 250 320 x 1050 x 250 348 x 1200 x 280
Weight / kg 14 14 19
Remote controller, wireless WZ-U01NE WZ-U01NE WZ-U01NE

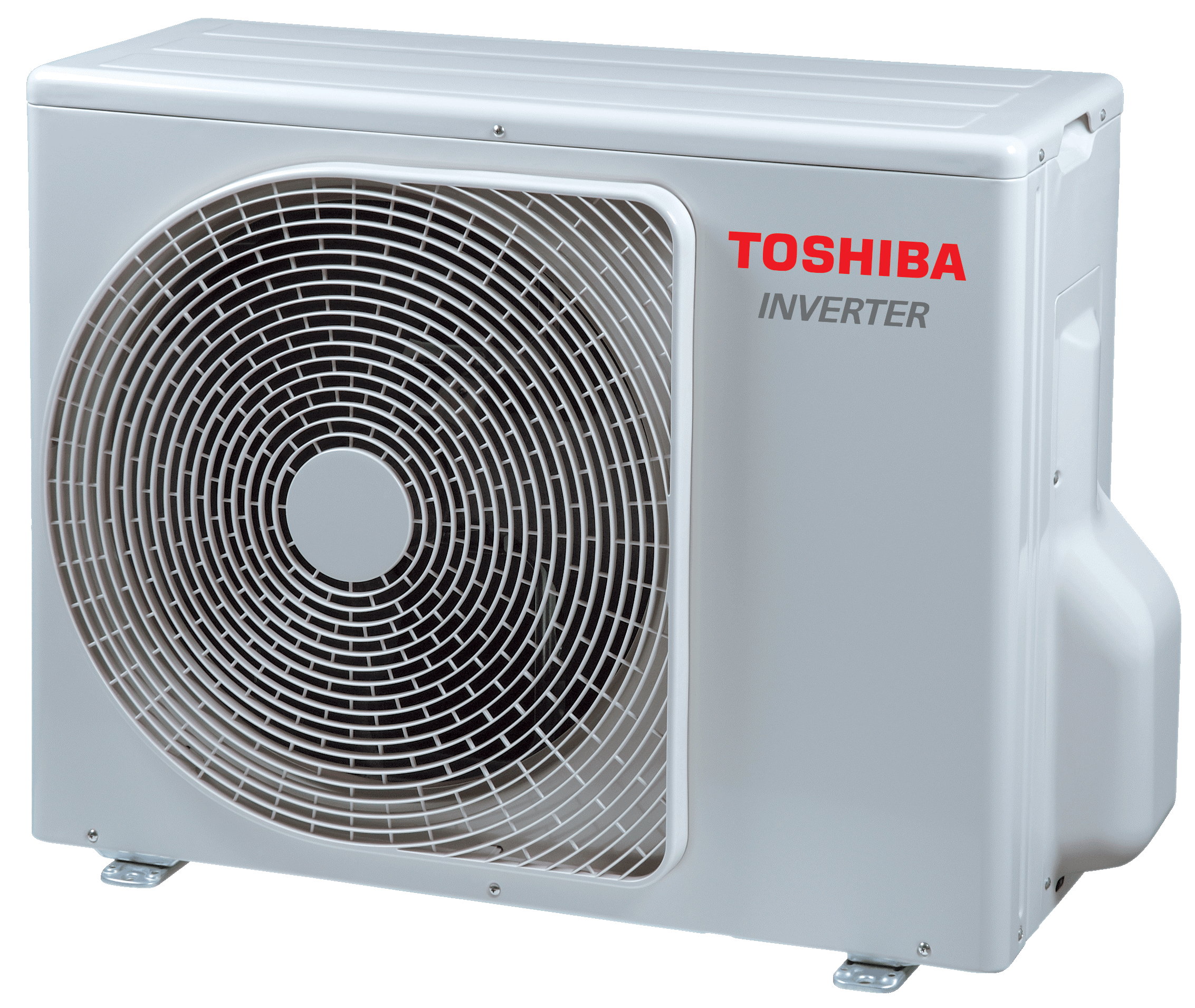

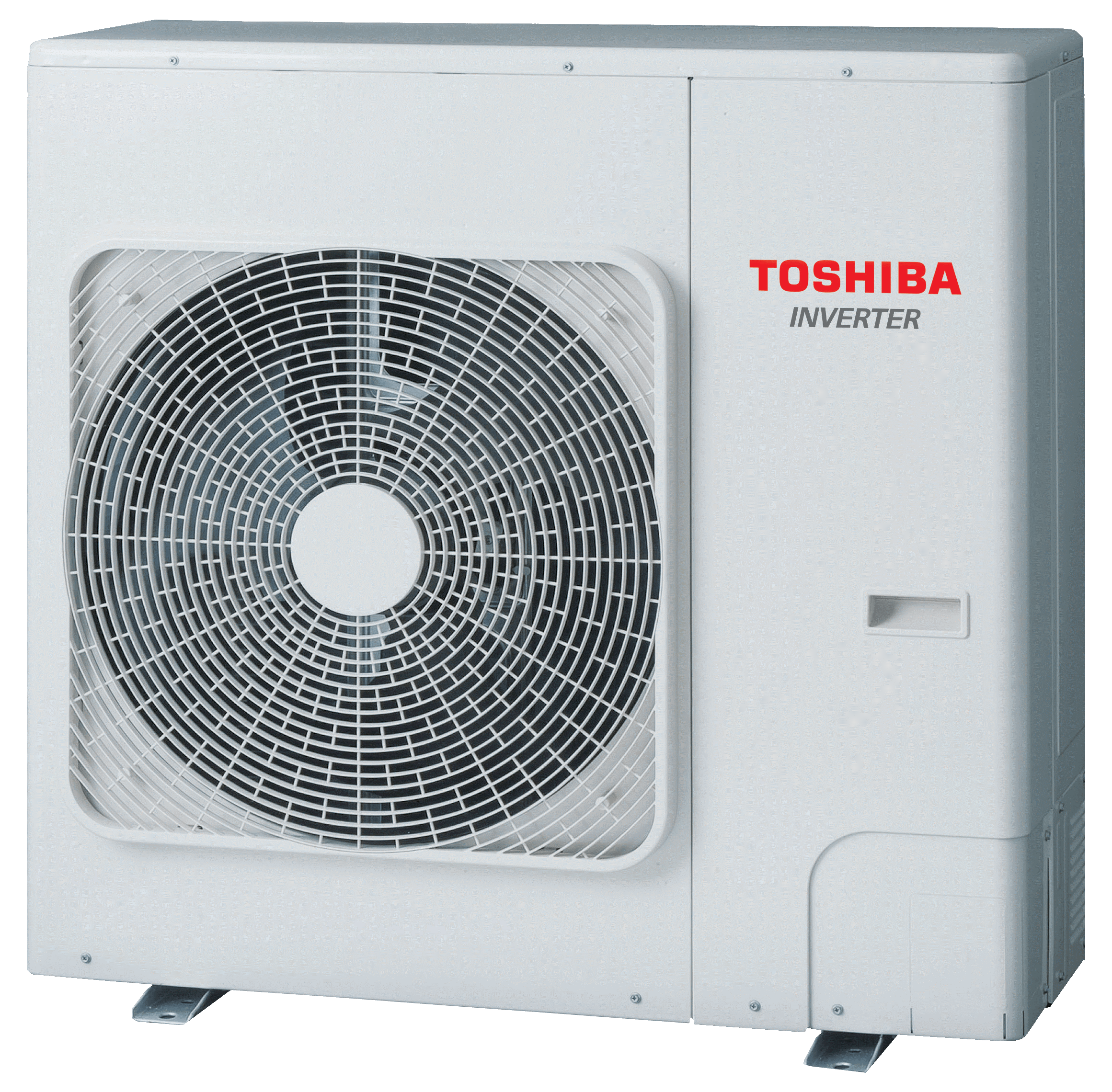

Outdoor Unit
Model name (Outdoor Unit) RAV-GE1801AP-SG1 RAV-GE2501AP-SG RAV-GE3601AP-SG1
Dimension, HxWxD / mm 630 x 800 x 300 890 x 900 x 320 890 x 900 x 320
Weight / kg 37 51 59
Recommended Isolator / A 20 20 32
Default:

Wireless remote controller kit RBC-AX32U(W)-E


Sensor unit; Standalone receiver

  • Start/Stop
  • Changing mode
  • Temperature setting
  • Air flow changing
  • Timer function Either “ON” time or “OFF” time or “CYCLIC” can be set how many 30 min. later ON or OFF is operated.
  • Control by 2 remote controllers is available. Two wireless remote controllers can operate one indoor unit. The indoor unit can then be operated separately from the two different locations.
  • Check code display
Optional:

Lite-vision plus remote controller RBC-AMS55E-ES


  • Wired remote controller with a built in 7-day timer-featuring a new multi-language
  • LCD display with backlight, energy saving options and a return back function.
  • Possibility to set and display the room name to easily set-up and monitor the working parameter.
  • New modern and desirable controller design with menu driven display.
  • Save mode by schedule timer to optimise energy consumption.
  • Room temperature display always available.
  • Two “Hot Keys” (F1, F2) for easy operation of air conditioner functions.
  • Easy to read layout including display of indoor unit model name and serial number.
  • Built-in backup power. Settings are kept in memory up to 72 hours in case of power failure.
  • Remote TA sensor available in controller.
  • Can be connected to a single indoor unit or a group of up to 8 indoor units.
